Bingchao Qin, Dongrui Liu, Qian Cao, Xiao Zhang, Li-Dong Zhao. SnSe crystalline thermoelectrics[J]. Materials Lab. doi: 10.54227/mlab.20230029
|
SnSe crystalline thermoelectrics
-
Abstract
Thermoelectric materials are increasingly crucial in addressing energy challenges for enabling conversion between heat and electricity. Crystalline tin selenide (SnSe) has gained significant attention since 2014 when its high-temperature thermoelectric performance was first reported. Based on unique characteristics in phonon and electron transports, numerous investigations have been conducted to promote the development of SnSe crystals for low- to mid-temperature waste recovery and electronic cooling applications. Herein, we concisely summarize the significant advancements for SnSe crystalline thermoelectrics, covering material performance optimization and full-scale thermoelectric device development. We then emphasize that the multiple valence bands and high in-plane carrier mobility promote high-performance p-type materials. Additionally, we highlight the critical role of three-dimensional (3D) charge and two-dimensional (2D) phonon transports for promising n-type out-of-plane conduction. Finally, personal insights into future research directions of enhancing performance of SnSe materials and devices are proposed, with the goal of advancing their practical applications.
-
Keywords:
- crystalline SnSe /
- thermoelectric /
- band structure /
- carrier mobility
-
-
Author Biographies
Bingchao Qin received his Ph.D. degree in the School of Materials Science and Engineering from Beihang University, China, in 2023, under the supervision of Prof. Li-Dong Zhao. He is currently a postdoctoral researcher at Beihang University. His research focuses on improving the performance and efficiency of crystalline SnSe based thermoelectric materials and devices, promoting the practical application of wide-bandgap SnSe crystals in both power generation and electronic cooling.
Xiao Zhang is an associate professor at Beihang University, China. She received her Ph.D. Degree in Materials Science and Engineering from Beihang University in 2018. She worked at Chongqing University as assistant Professor from 2018 to 2020. She joined Beihang University and began her postdoctoral research in 2020. She then joined the Research Institute for Frontier Science of Beihang University as an associate professor in 2022. Her main research interests focus on electrical transport, thermal transport, and thermoelectric materials and devices.
Li-Dong Zhao is a full professor of the School of Materials Science and Engineering at Beihang University, China. He received his Ph.D. degree from the University of Science and Technology Beijing, China in 2009. He was a postdoctoral research associate at the Université Paris-Sud and Northwestern University from 2009 to 2014. His research interests include electrical and thermal transport behaviors in the compounds with layered structures. He has authored over 270 peer-reviewed publications in international journals with an h-index of 87. Professor Zhao has been identified as Highly Cited Researchers by Clarivate (2019-2023). Group website: http://shi.buaa.edu.cn/zhaolidong/zh_CN/index.htm. -
References
1. Q. Yan, M. G. Kanatzidis, Nat. Mater., 2022, 21, 503 2. L. E. Bell, Science, 2008, 321, 1457 3. Y. Qin, B. Qin, D. Wang, C. Chang, L.-D. Zhao, Energy Environ. Sci., 2022, 15, 4527 4. G. Tan, L.-D. Zhao, M. G. Kanatzidis, Chem. Rev., 2016, 116, 12123 5. X.-L. Shi, J. Zou, Z.-G. Chen, Chem. Rev., 2020, 120, 7399 6. Z. Liu, W. Gao, F. Guo, W. Cai, Q. Zhang, J. Sui, Mater. Lab, 2022, 1, 220003 7. J. He, T. M. Tritt, Science, 2017, 357, eaak9997 8. Y. Xiao, Mater. Lab, 2022, 1, 220025 9. T. Zhu, Y. Liu, C. Fu, J. P. Heremans, J. G. Snyder, X. Zhao, Adv. Mater., 2017, 29, 1605884 10. Y. Pei, A. D. LaLonde, N. A. Heinz, X. Shi, S. Iwanaga, H. Wang, L. Chen, G. J. Snyder, Adv. Mater., 2011, 23, 5674 11. B. Qin, L.-D. Zhao, Mater. Lab, 2022, 1, 220004 12. L.-D. Zhao, Y. Xiao, S. Wang, Acta Metall. Sin., 2021, 57, 1171 13. B. Qin, L.-D. Zhao, Science, 2022, 378, 832 14. Y. Pei, H. Wang, G. Snyder, Adv. Mater., 2012, 24, 6125 15. Y.-P. Wang, B.-C. Qin, D.-Y. Wang, T. Hong, X. Gao, L.-D. Zhao, Rare Met., 2021, 40, 2819 16. H. Pang, X. Zhang, D. Wang, R. Huang, Z. Yang, X. Zhang, Y. Qiu, L.-D. Zhao, J. Materiomics, 2022, 8, 184 17. K. Biswas, J. He, I. D. Blum, C.-I. Wu, T. P. Hogan, D. N. Seidman, V. P. Dravid, M. G. Kanatzidis, Nature, 2012, 489, 414 18. B. Jiang, Y. Yu, J. Cui, X. Liu, L. Xie, J. Liao, Q. Zhang, Y. Huang, S. Ning, B. Jia, B. Zhu, S. Bai, L. Chen, S. J. Pennycook, J. He, Science, 2021, 371, 830 19. S. Roychowdhury, T. Ghosh, R. Arora, M. Samanta, L. Xie, N. K. Singh, A. Soni, J. He, U. V. Waghmare, K. Biswas, Science, 2021, 371, 722 20. B. Qin, D. Wang, L.-D. Zhao, InfoMat, 2021, 3, 755 21. B. Poudel, Q. Hao, Y. Ma, Y. Lan, A. Minnich, B. Yu, X. Yan, D. Wang, A. Muto, D. Vashaee, Science, 2008, 320, 634 22. J. Mao, H. Zhu, Z. Ding, Z. Liu, G. A. Gamage, G. Chen, Z. Ren, Science, 2019, 365, 495 23. J. Yang, G. Li, H. Zhu, N. Chen, T. Lu, J. Gao, L. Guo, J. Xiang, P. Sun, Y. Yao, R. Yang, H. Zhao, Joule, 2022, 6, 193 24. Z. Liu, N. Sato, W. Gao, K. Yubuta, N. Kawamoto, M. Mitome, K. Kurashima, Y. Owada, K. Nagase, C.-H. Lee, J. Yi, K. Tsuchiya, T. Mori, Joule, 2021, 5, 1196 25. Y. Pei, G. Tan, D. Feng, L. Zheng, Q. Tan, X. Xie, S. Gong, Y. Chen, J. F. Li, J. He, Adv. Energy Mater., 2017, 7, 1601450 26. Y. Qin, T. Hong, B. Qin, D. Wang, W. He, X. Gao, Y. Xiao, L.-D. Zhao, Adv. Funct. Mater., 2021, 31, 2102185 27. W. Li, L. Zheng, B. Ge, S. Lin, X. Zhang, Z. Chen, Y. Chang, Y. Pei, Adv. Mater., 2017, 29, 1605887 28. C.-R. Guo, B.-C. Qin, D.-Y. Wang, L.-D. Zhao, Rare Met., 2022, 41, 3803 29. R. Basu, A. Singh, Mater. Today Phys., 2021, 21, 100468 30. H. Liu, X. Shi, F. Xu, L. Zhang, W. Zhang, L. Chen, Q. Li, C. Uher, T. Day, G. J. Snyder, Nat. Mater., 2012, 11, 422 31. C. Fu, S. Bai, Y. Liu, Y. Tang, L. Chen, X. Zhao, T. Zhu, Nat. Commun., 2015, 6, 8144 32. L. Zhang, X.-L. Shi, Y.-L. Yang, Z.-G. Chen, Mater. Today, 2021, 46, 62 33. L. Li, W.-D. Liu, Q. Liu, Z.-G. Chen, Adv. Funct. Mater., 2022, 32, 2200548 34. Y. Fan, Z. Liu, G. Chen, Small, 2021, 17, 2100505 35. L.-D. Zhao, S.-H. Lo, Y. Zhang, H. Sun, G. Tan, C. Uher, C. Wolverton, V. P. Dravid, M. G. Kanatzidis, Nature, 2014, 508, 373 36. L.-D. Zhao, G. Tan, S. Hao, J. He, Y. Pei, H. Chi, H. Wang, S. Gong, H. Xu, V. P. Dravid, C. Uher, G. J. Snyder, C. Wolverton, M. G. Kanatzidis, Science, 2016, 351, 141 37. C. Chang, M. Wu, D. He, Y. Pei, C.-F. Wu, X. Wu, H. Yu, F. Zhu, K. Wang, Y. Chen, L. Huang, J.-F. Li, J. He, L.-D. Zhao, Science, 2018, 360, 778 38. B. Qin, D. Wang, X. Liu, Y. Qin, J.-F. Dong, J. Luo, J.-W. Li, W. Liu, G. Tan, X. Tang, J.-F. Li, J. He, L.-D. Zhao, Science, 2021, 373, 556 39. L. Su, D. Wang, S. Wang, B. Qin, Y. Wang, Y. Qin, Y. Jin, C. Chang, L.-D. Zhao, Science, 2022, 375, 1385 40. D. Liu, D. Wang, T. Hong, Z. Wang, Y. Wang, Y. Qin, L. Su, T. Yang, X. Gao, Z. Ge, B. Qin, L.-D. Zhao, Science, 2023, 380, 841 41. D. Liu, B. Qin, L.-D. Zhao, Mater. Lab, 2022, 1, 220006 42. B. Qin, D. Wang, T. Hong, Y. Wang, D. Liu, Z. Wang, X. Gao, Z.-H. Ge, L.-D. Zhao, Nat. Commun., 2023, 14, 1366 43. S. Liu, X. Guo, M. Li, W.-H. Zhang, X. Liu, C. Li, Angew. Chem. Int. Ed., 2011, 50, 12050 44. G. Shi, E. Kioupakis, Nano Lett., 2015, 15, 6926 45. L.-D. Zhao, C. Chang, G. Tan, M. G. Kanatzidis, Energy Environ. Sci., 2016, 9, 3044 46. C. W. Li, J. Hong, A. F. May, D. Bansal, S. Chi, T. Hong, G. Ehlers, O. Delaire, Nat. Phys., 2015, 11, 1063 47. Y. K. Lee, Z. Luo, S. P. Cho, M. G. Kanatzidis, I. Chung, Joule, 2019, 3, 719 48. T.-R. Wei, G. Tan, X. Zhang, C.-F. Wu, J.-F. Li, V. P. Dravid, G. J. Snyder, M. G. Kanatzidis, J. Am. Chem. Soc., 2016, 138, 8875 49. K. Peng, X. Lu, H. Zhan, S. Hui, X. Tang, G. Wang, J. Dai, C. Uher, G. Wang, X. Zhou, Energy Environ. Sci., 2016, 9, 454 50. B. Qin, D. Wang, W. He, Y. Zhang, H. Wu, S. J. Pennycook, L.-D. Zhao, J. Am. Chem. Soc., 2019, 141, 1141 51. B. Qin, Y. Zhang, D. Wang, Q. Zhao, B. Gu, H. Wu, H. Zhang, B. Ye, S. J. Pennycook, L.-D. Zhao, J. Am. Chem. Soc., 2020, 142, 5901 52. B. Qin, W. He, L.-D. Zhao, J. Materiomics, 2020, 6, 671 53. G. J. Snyder, A. H. Snyder, M. Wood, R. Gurunathan, B. H. Snyder, C. Niu, Adv. Mater., 2020, 32, 2001537 54. D. Wu, L. Wu, D. He, L.-D. Zhao, W. Li, M. Wu, M. Jin, J. Xu, J. Jiang, L. Huang, Y. Zhu, M. G. Kanatzidis, J. He, Nano Energy, 2017, 35, 321 55. Z. Wang, C. Fan, Z. Shen, C. Hua, Q. Hu, F. Sheng, Y. Lu, H. Fang, Z. Qiu, J. Lu, Z. Liu, W. Liu, Y. Huang, Z. A. Xu, D. W. Shen, Y. Zheng, Nat. Commun., 2018, 9, 47 56. X. Li, K. Lu, Science, 2019, 364, 733 57. I. Chung, Science, 2023, 380, 800 58. K. Kutorasinski, B. Wiendlocha, S. Kaprzyk, J. Tobola, Phys. Rev. B, 2015, 91, 205201 59. A. T. Duong, V. Q. Nguyen, G. Duvjir, V. T. Duong, S. Kwon, J. Y. Song, J. K. Lee, J. E. Lee, S. Park, T. Min, J. Lee, J. Kim, S. Cho, Nat. Commun., 2016, 7, 13713 60. C. Chang, D. Wang, D. He, W. He, F. Zhu, G. Wang, J. He, L.-D. Zhao, Adv. Energy Mater., 2019, 9, 1901334 61. H. Shi, L. Su, S. Bai, B. Qin, Y. Wang, S. Liu, C. Chang, L.-D. Zhao, Energy Environ. Sci., 2023, 16, 3128 62. Z. Wang, J. Wang, Y. Zang, Q. Zhang, J.-A. Shi, T. Jiang, Y. Gong, C.-L. Song, S.-H. Ji, L.-L. Wang, L. Gu, K. He, W. Duan, X. Ma, X. Chen, Q.-K. Xue, Adv. Mater., 2015, 27, 4150 63. H. Wang, Z. Pan, Mater. Lab, 2023, 2, 220053 64. M. Jin, J. Jiang, R. Li, X. Wang, Y. Chen, Y. Chen, J. Xu, Cryst. Res. Technol., 2019, 54, 1900032 65. M. Jin, H. Shao, H. Hu, D. Li, H. Shen, J. Xu, J. Jiang, J. Alloys Compd., 2017, 712, 857 66. M. Jin, Z. Tang, R. Zhang, L. Zhou, X. Wang, R. Li, J. Alloys Compd., 2020, 824, 153869 -
Rights and permissions
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.
Figures(5)
Information
Article Metrics
Export File
Citation
Bingchao Qin, Dongrui Liu, Qian Cao, Xiao Zhang, Li-Dong Zhao. SnSe crystalline thermoelectrics[J]. Materials Lab. doi: 10.54227/mlab.20230029
Format
Content
DownLoad:
-
Figure 1.
Timeline of the significant achievements for SnSe crystalline thermoelectrics. a Undoped SnSe exhibits exceptional ZTmax ~2.6, originating from extremely low thermal conductivity and strong anharmonicity.[35] b p-type SnSe crystals with continuous achievements on both room-temperature ZT and ZTave along the in-plane direction through the utilization of multiple valence bands transport,[36] promotion of multiband synglisis,[38] and implementation of lattice plainification strategy,[40] respectively. c n-type SnSe crystals with continuous achievements on both ZTmax and ZTave in the out-of-plane direction by utilizing 3D charge and 2D phonon transports,[37] and manipulating layered phonon-electron decoupling,[39] respectively.
-

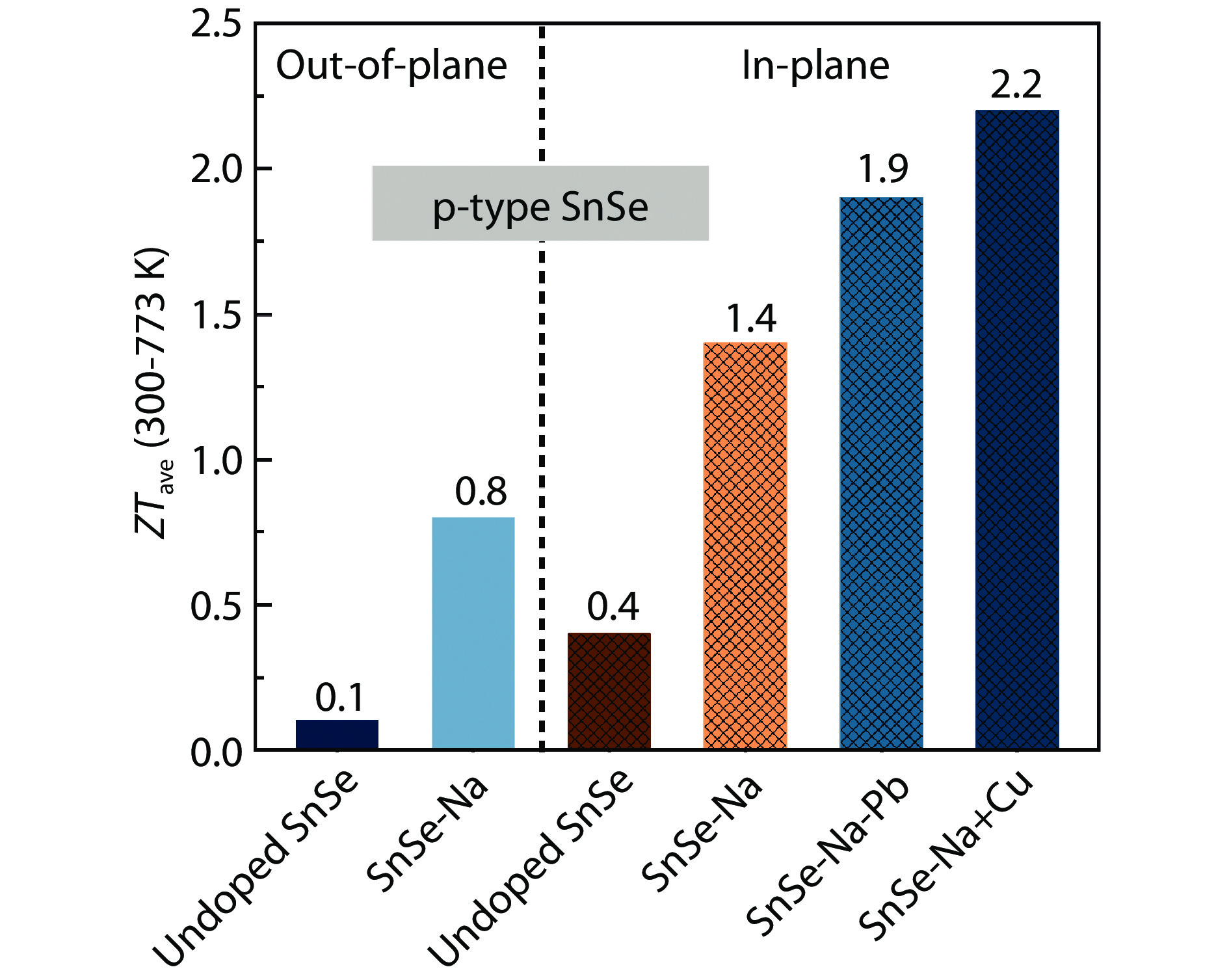

Figure 2.
ZTave (300-773 K) of typical p-type crystalline SnSe samples along out-of-plane and in-plane directions.[35, 36, 38, 40]
-
Figure 3.
Schematic of the Lattice Plainification Strategy. The intrinsic defects in materials strongly scatter carriers and impede carrier transport. Lattice plainification by fixing lattice defects could improve carrier mobility and electrical properties, contributing to high-ranged TE performance especially near room temperature.[40, 57]
-
Figure 4.
ZTave (300-773 K) of typical n-type crystalline SnSe samples along in-plane and out-of-plane directions.[37, 39, 60, 61]
