Progress and challenges for thermoelectric cooling: from materials and devices to manifold applications
-
Abstract
Due to the unique advantages of precise temperature control, fast response, noiselessness, miniaturization, and eco-friendliness, thermoelectric cooling (TEC) technology has been recognized as an optimal solution to mitigate the global warming and energy crisis issues, as well as being an effective alternative for thermal management. In this review, we started with the discussion of the current TEC materials and devices, and then provided an extensive summary of the manifold applications of TEC technology including electronic thermal management, electric vehicles, zero energy buildings, medical treatments, and civil applications, etc. Finally, challenging aspects of TEC materials and devices, as well as the possible research directions for future applications in various fields for TEC technology, were proposed, providing important prospect and significant guidance for TEC community.
-
-
Author Biographies
Dongrui Liu received his B.E. degree in the School of Materials Science and Engineering from Northeastern University, China, in 2021. He is a postgraduate candidate at Beihang University under the supervision of Prof. Li-Dong Zhao. His research focuses on the transport properties of SnSe crystalline thermoelectrics.
Bingchao Qin received his Ph.D. degree in the School of Materials Science and Engineering from Beihang University, China, in 2023, under the supervision of Prof. Li-Dong Zhao. He is currently a postdoctoral researcher at Beihang University. His research focuses on improving the performance and efficiency of crystalline SnSe based thermoelectric materials and devices, promoting the practical application of wide-bandgap SnSe crystals in both power generation and electronic cooling.
Li-Dong Zhao is a full professor of the School of Materials Science and Engineering at Beihang University, China. He received his Ph.D. degree from the University of Science and Technology Beijing, China in 2009. He was a postdoctoral research associate at the Université Paris-Sud and Northwestern University from 2009 to 2014. His research interests include electrical and thermal transport behaviors in the compounds with layered structures. He has authored over 270 peer-reviewed publications in international journals with an h-index of 87. Professor Zhao has been identified as Highly Cited Researchers by Clarivate (2019-2022). Group website: http://shi.buaa.edu.cn/zhaolidong/zh_CN/index.htm . -
References
1. M. Isaac, D. P. v. Vuuren, Energy Policy, 2009, 37, 507 2. B. Qin, D. Wang, T. Hong, Y. Wang, D. Liu, Z. Wang, X. Gao, Z.-H. Ge, L.-D. Zhao, Nat. Commun., 2023, 14, 1366 3. Q. Yan, M. G. Kanatzidis, Nat. Mater., 2022, 21, 503 4. G. Tan, L.-D. Zhao, M. G. Kanatzidis, Chem. Rev., 2016, 116, 12123 5. J. Mao, G. Chen, Z. Ren, Nat. Mater., 2021, 20, 454 6. J. Yang, G. Li, H. Zhu, N. Chen, T. Lu, J. Gao, L. Guo, J. Xiang, P. Sun, Y. Yao, R. Yang, H. Zhao, Joule, 2022, 6, 193 7. B. Qin, L.-D. Zhao, Science, 2022, 378, 832 8. W. Y. Chen, X. L. Shi, J. Zou, Z. G. Chen, Small Methods, 2022, 6, e2101235 9. S. Roychowdhury, T. Ghosh, R. Arora, M. Samanta, L. Xie, N. K. Singh, A. Soni, J. Q. He, U. V. Waghmare, K. Biswas, Science, 2021, 371, 722 10. H. Shi, Y. Qin, B. Qin, L. Su, Y. Wang, Y. Chen, X. Gao, H. Liang, Z.-H. Ge, T. Hong, L.-D. Zhao, Adv. Energy Mater., 2022, 12, 2202539 11. L. Su, H. Shi, S. Wang, D. Wang, B. Qin, Y. Wang, C. Chang, L.-D. Zhao, Adv. Energy Mater., 2023, 13, 2300312 12. B. Qin, L.-D. Zhao, Mater. Lab, 2022, 1, 220004 13. J. Cao, X. Y. Tan, N. Jia, J. Zheng, S. W. Chien, H. K. Ng, C. K. I. Tan, H. Liu, Q. Zhu, S. Wang, G. Zhang, K. Chen, Z. Li, L. Zhang, J. Xu, L. Hu, Q. Yan, J. Wu, A. Suwardi, Nano Energy, 2022, 96, 107147 14. H.-L. Zhuang, H. Hu, J. Pei, B. Su, J.-W. Li, Y. Jiang, Z. Han, J.-F. Li, Energy Environ. Sci., 2022, 15, 2039 15. Y. Sun, H. Wu, X. Dong, L. Xie, Z. Liu, R. Liu, Q. Zhang, W. Cai, F. Guo, J. Sui, Adv. Funct. Mater., 2023, 33, 2301423 16. D. Liu, D. Wang, T. Hong, Z. Wang, Y. Wang, Y. Qin, L. Su, T. Yang, X. Gao, Z.-H. Ge, B. Qin, L.-D. Zhao, Science, 2023, 380, 841 17. J. Mao, H. Zhu, Z. Ding, Z. Liu, G. A. Gamage, G. Chen, Z. Ren, Science, 2019, 365, 495 18. Z. Liu, W. Gao, H. Oshima, K. Nagase, C. H. Lee, T. Mori, Nat. Commun., 2022, 13, 1120 19. X. Wu, Y. Lin, Z. Han, H. Li, C. Liu, Y. Wang, P. Zhang, K. Zhu, F. Jiang, J. Huang, H. Fan, F. Cheng, B. Ge, W. Liu, Adv. Energy Mater., 2022, 12, 2203039 20. L.-D. Zhao, H. J. Wu, S. Q. Hao, C. I. Wu, X. Y. Zhou, K. Biswas, J. Q. He, T. P. Hogan, C. Uher, C. Wolverton, V. P. Dravid, M. G. Kanatzidis, Energy Environ. Sci., 2013, 6 21. J. Shuai, B. H. Ge, J. Mao, S. W. Song, Y. M. Wang, Z. F. Ren, J. Am. Chem. Soc., 2018, 140, 1910 22. X. Li, P. Liu, E. Zhao, Z. Zhang, T. T. A. Guidi, M. D. Le, M. Avdeev, K. Ikeda, T. Otomo, M. Kofu, K. Nakajima, J. Chen, L. He, Y. Ren, X. Wang, B. Wang, Z. Ren, H. Zhao, F. Wang, Nat. Commun., 2020, 11, 942 23. K. D. Coonley, B. C. O'Quinn, J. C. Caylor, R. Venkatasubramanian, MRS Proc., 2003, 793, 147 24. R. Venkatasubramanian, T. Colpitts, B. O’Quinn, S. Liu, N. El-Masry, M. Lamvik, Appl. Phys. Lett., 1999, 75, 1104 25. T. C. Harman, P. J. Taylor, M. P. Walsh, B. E. LaForge, Science, 2002, 297, 2229 26. Y. Zhang, Y. Chen, C. Gong, J. Yang, R. Qian, Y. Wang, J. Microelectromech. S., 2007, 16, 1113 27. W. Huang, M. Wang, L. Hu, C. Wang, Z. Xie, H. Zhang, Adv. Funct. Mater., 2020, 30, 2005223 28. M. S. Dresselhaus, G. Chen, M. Y. Tang, R. G. Yang, H. Lee, D. Z. Wang, Z. F. Ren, J. P. Fleurial, P. Gogna, Adv. Mater., 2007, 19, 1043 29. G. H. Carey, A. L. Abdelhady, Z. Ning, S. M. Thon, O. M. Bakr, E. H. Sargent, Chem. Rev., 2015, 115, 12732 30. Y. Qi, Z. Wang, M. Zhang, F. Yang, X. Wang, J. Mater. Chem. A, 2013, 1, 6110 31. Z. Lu, M. Layani, X. Zhao, L. P. Tan, T. Sun, S. Fan, Q. Yan, S. Magdassi, H. H. Hng, Small, 2014, 10, 3551 32. F. T. Rabouw, C. de Mello Donega, Top Curr. Chem., 2016, 374, 58 33. W. Huang, J. Zhu, M. Wang, L. Hu, Y. Tang, Y. Shu, Z. Xie, H. Zhang, Adv. Funct. Mater., 2021, 31, 2007584 34. J. Chen, H. Chen, F. Hao, X. Ke, N. Chen, T. Yajima, Y. Jiang, X. Shi, K. Zhou, M. Döbeli, T. Zhang, B. Ge, H. Dong, H. Zeng, W. Wu, L. Chen, ACS Energy Lett., 2017, 2, 915 35. Y. Sun, P. Sheng, C. Di, F. Jiao, W. Xu, D. Qiu, D. Zhu, Adv. Mater., 2012, 24, 932 36. N. Toshima, K. Oshima, H. Anno, T. Nishinaka, S. Ichikawa, A. Iwata, Y. Shiraishi, Adv. Mater., 2015, 27, 2246 37. J. A. Perez-Taborda, O. Caballero-Calero, L. Vera-Londono, F. Briones, M. Martin-Gonzalez, Adv. Energy Mater., 2018, 8, 1702093 38. H. Böttner, G. Chen, R. Venkatasubramanian, MRS Bull., 2006, 31, 211 39. H. Choi, K. Jeong, J. Chae, H. Park, J. Baeck, T. H. Kim, J. Y. Song, J. Park, K.-H. Jeong, M.-H. Cho, Nano Energy, 2018, 47, 374 40. M. Tan, W.-D. Liu, X.-L. Shi, J. Shang, H. Li, X. Liu, L. Kou, M. Dargusch, Y. Deng, Z.-G. Chen, Nano Energy, 2020, 78, 105379 41. O. Bubnova, Z. U. Khan, A. Malti, S. Braun, M. Fahlman, M. Berggren, X. Crispin, Nat. Mater., 2011, 10, 429 42. O. Bubnova, Z. U. Khan, H. Wang, S. Braun, D. R. Evans, M. Fabretto, P. Hojati-Talemi, D. Dagnelund, J. B. Arlin, Y. H. Geerts, S. Desbief, D. W. Breiby, J. W. Andreasen, R. Lazzaroni, W. M. Chen, I. Zozoulenko, M. Fahlman, P. J. Murphy, M. Berggren, X. Crispin, Nat. Mater., 2014, 13, 190 43. G. H. Kim, L. Shao, K. Zhang, K. P. Pipe, Nat. Mater., 2013, 12, 719 44. J.-H. Hsu, W. Choi, G. Yang, C. Yu, Org. Electron., 2017, 45, 182 45. M. Tan, L. Hao, H. Li, C. Li, X. Liu, D. Yan, T. Yang, Y. Deng, Sci. Rep., 2020, 10, 5978 46. M. Tan, W.-D. Liu, X.-L. Shi, H. Gao, H. Li, C. Li, X. B. Liu, Y. Deng, Z.-G. Chen, Small Methods, 2019, 3, 1900582 47. M. Wang, J. Zhu, Y. Zi, W. Huang, ACS Appl. Mater. Interfaces, 2021, 13, 47302 48. W. Huang, L. Hu, Y. Tang, Z. Xie, H. Zhang, Adv. Funct. Mater., 2020, 30, 2003301 49. M. Wang, J. Zhu, Y. Zi, Z.-G. Wu, H. Hu, Z. Xie, Y. Zhang, L. Hu, W. Huang, J. Mater. Chem. A, 2021, 9, 12433 50. Q. Jin, W. Shi, Y. Zhao, J. Qiao, J. Qiu, C. Sun, H. Lei, K. Tai, X. Jiang, ACS Appl. Mater. Interfaces, 2018, 10, 1743 51. Q. Wu, J. Hu, Compos. B. Eng., 2016, 107, 59 52. T.-T. Sun, B.-Y. Zhou, Q. Zheng, L.-J. Wang, W. Jiang, G. J. Snyder, Nat. Commun., 2020, 11, 572 53. Y. Du, K. Cai, S. Chen, H. Wang, S.-Z. Shen, R. Donelson, T. Lin, Sci. Rep., 2015, 5, 6411 54. S. J. Kim, J. H. We, B. J. Cho, Energy Environ. Sci., 2014, 7, 1959 55. S. Shin, R. Kumar, J. W. Roh, D. S. Ko, H. S. Kim, S. I. Kim, L. Yin, S. M. Schlossberg, S. Cui, J. M. You, S. Kwon, J. Zheng, J. Wang, R. Chen, Sci. Rep., 2017, 7, 7317 56. L. D. Hicks, M. S. Dresselhaus, Phys. Rev. B Condens. Matter., 1993, 47, 12727 57. M. Hong, J. Zou, Z.-G. Chen, Adv. Mater., 2019, 31, e1807071 58. X. Zhao, D. Madan, Y. Cheng, J. Zhou, H. Li, S. M. Thon, A. E. Bragg, M. E. DeCoster, P. E. Hopkins, H. E. Katz, Adv. Mater., 2017, 29, 1606928 59. T. Zhang, K. Li, C. Li, S. Ma, H. H. Hng, L. Wei, Adv. Electron. Mater., 2017, 3, 1600554 60. Y. Lu, Z. D. Yu, R. Z. Zhang, Z.-F. Yao, H.-Y. You, L. Jiang, H. I. Un, B.-W. Dong, M. Xiong, J.-Y. Wang, J. Pei, Angew Chem. Int. Ed. Engl., 2019, 58, 11390 61. Y. Lu, J.-Y. Wang, J. Pei, Chem. Mater., 2019, 31, 6412 62. D. Neusser, C. Malacrida, M. Kern, Y. M. Gross, J. van Slageren, S. Ludwigs, Chem. Mater., 2020, 32, 6003 63. S. Xu, M. Hong, X.-L. Shi, Y. Wang, L. Ge, Y. Bai, L. Wang, M. Dargusch, J. Zou, Z.-G. Chen, Chem. Mater., 2019, 31, 5238 64. L. Wang, Y. Liu, Z. Zhang, B. Wang, J. Qiu, D. Hui, S. Wang, Compos. B. Eng., 2017, 122, 145 65. H. Song, K. Cai, Energy, 2017, 125, 519 66. K. Shi, F.-J. Zhang, C.-A. Di, T.-W. Yan, Y. Zou, X. Zhou, D.-B. Zhu, J.-Y. Wang, J. Pei, J. Am. Chem. Soc., 2015, 137, 6979 67. Z. Han, A. Fina, Prog. Polym. Sci., 2011, 36, 914 68. Y. Du, K.-F. Cai, S.-Z. Shen, R. Donelsonand, J.-Y. Xu, H.-X. Wang, T. Lin, RSC Adv., 2017, 7, 43737 69. T. G. Novak, H. Shin, J. Kim, K. Kim, A. Azam, C. V. Nguyen, S. H. Park, J. Y. Song, S. Jeon, ACS Appl. Mater. Inter., 2018, 10, 17957 70. X. Hu, K. Zhang, J. Zhang, S. Wang, Y. Qiu, ACS Appl. Energy Mater., 2018, 1, 4883 71. X. Wang, F. Meng, Q. Jiang, W. Zhou, F. Jiang, T. Wang, X. Li, S. Li, Y. Lin, J. Xu, ACS Appl. Energy Mater., 2018, 1, 3123 72. Y. Wang, W.-D. Liu, H. Gao, L. J. Wang, M. Li, X.-L. Shi, M. Hong, H. Wang, J. Zou, Z.-G. Chen, ACS Appl. Mater. Inter., 2019, 11, 31237 73. Y. Wang, W.-D. Liu, X.-L. Shi, M. Hong, L.-J. Wang, M. Li, H. Wang, J. Zou, Z.-G. Chen, Chem. Eng. J., 2020, 391, 123513 74. D. Ni, H. Song, Y. Chen, K. Cai, J. Materiomics, 2020, 6, 364 75. Y. Du, X. Liu, J. Xu, S.-Z. Shen, Mater. Chem. Front., 2019, 3, 1328 76. X.-L. Shi, W.-Y. Chen, X. Tao, J. Zou, Z.-G. Chen, Mater. Horizons, 2020, 7, 3065 77. J. Qiao, Y. Zhao, Q. Jin, J. Tan, S. Kang, J. Qiu, K. Tai, ACS Appl. Mater. Inter., 2019, 11, 38075 78. X.-L. Shi, K. Zheng, W.-D. Liu, Y. Wang, Y.-Z. Yang, Z.-G. Chen, J. Zou, Adv. Energy Mater., 2018, 8, 1800775 79. N. Somdock, S. Kianwimol, A. Harnwunggmoung, A. Sakulkalavek, R. Sakdanuphab, J. Alloys Compd., 2019, 773, 78 80. M. Ferhat, J. Nagao, J. Appl. Phys., 2000, 88, 813 81. P. Nuthongkum, R. Sakdanuphab, M. Horprathum, A. Sakulkalavek, J. Electron. Mater., 2017, 46, 6444 82. Y. Pei, N. A. Heinz, G. J. Snyder, J. Mater. Chem., 2011, 21, 18256 83. J. B. Vaney, G. Delaizir, E. Alleno, O. Rouleau, A. Piarristeguy, J. Monnier, C. Godart, M. Ribes, R. Escalier, A. Pradel, A. P. Gonçalves, E. B. Lopes, G. J. Cuello, P. Ziolkowski, E. Müller, C. Candolfi, A. Dauscher, B. Lenoir, J. Mater. Chem. A, 2013, 1, 8190 84. C. Yang, X. Tian, D. Li, Y. Cao, F. Zhao, C. Shi, J. Mater. Process. Technol., 2017, 248, 1 85. J. B. Vaney, A. Piarristeguy, A. Pradel, E. Alleno, B. Lenoir, C. Candolfi, A. Dauscher, A. P. Gonçalves, E. B. Lopes, G. Delaizir, J. Monnier, M. Ribes, C. Godart, J. Solid State Chem., 2013, 203, 212 86. S. He, Y. Li, L. Liu, Y. Jiang, J. Feng, W. Zhu, J. Zhang, Z. Dong, Y. Deng, J. Luo, W. Zhang, G. Chen, Sci. Adv., 2020, 6, eaaz8423 87. T. Varghese, C. Hollar, J. Richardson, N. Kempf, C. Han, P. Gamarachchi, D. Estrada, R. J. Mehta, Y. Zhang, Sci. Rep., 2016, 6, 33135 88. L. M. Goncalves, P. Alpuim, A. G. Rolo, J. H. Correia, Thin Solid Films, 2011, 519, 4152 89. H. Chang, C. Chen, Y. Kuo, Nanoscale, 2013, 5, 7017 90. Y. Zhao, T. Yang, Y. Tong, J. Wang, J. Luan, Z. Jiao, D. Chen, Y. Yang, A. Hu, T. Liu, J. Kai, Acta Mater., 2017, 138, 72 91. D. Madan, Z. Wang, P. K. Wright, J. W. Evans, Appl. Energy, 2015, 156, 587 92. Z. Lu, H. Zhang, C. Mao, C. M. Li, Appl. Energy, 2016, 164, 57 93. K. Jung, Y. Jung, C. Choi, J. Lee, J. Ko, Curr. Appl. Phys., 2016, 16, 1442 94. J. H. We, S. J. Kim, B. J. Cho, Energy, 2014, 73, 506 95. L. Huang, S. Lin, Z. Xu, H. Zhou, J. Duan, B. Hu, J. Zhou, Adv. Mater., 2020, 32, e1902034 96. Y. Eom, D. Wijethunge, H. Park, S. H. Park, W. Kim, Appl. Energy, 2017, 206, 649 97. J. Gao, L. Miao, C. Liu, X. Wang, Y. Peng, X. Wei, J. Zhou, Y. Chen, R. Hashimoto, T. Asaka, K. Koumoto, J. Mater. Chem. A, 2017, 5, 24740 98. Y. Ding, Y. Qiu, K. Cai, Q. Yao, S. Chen, L. Chen, J. He, Nat. Commun., 2019, 10, 841 99. J. Liu, Y. Jia, Q. Jiang, F. Jiang, C. Li, X. Wang, P. Liu, P. Liu, F. Hu, Y. Du, J. Xu, ACS Appl. Mater., 2018, 10, 44033 100. F. Ren, P. Menchhofer, J. Kiggans, H. Wang, J. Electron. Mater., 2016, 45, 1412 101. F. Jiang, L. Wang, C. Li, X. Wang, Y. Hu, H. Liu, H. Yang, F. Zhao, J. Xu, J. Polym. Res., 2017, 24, 68 102. L. Ruan, Y. Zhao, Z. Chen, W. Zeng, S. Wang, D. Liang, J. Zhao, Polymers (Basel), 2020, 12, 553 103. J.-Y. Kim, W. Lee, Y. H. Kang, S. Y. Cho, K.-S. Jang, Carbon, 2018, 133, 293 104. Q. Meng, K. Cai, Y. Du, L. Chen, J. Alloys Compd., 2019, 778, 163 105. Q. Jiang, C. Liu, J. Xu, B. Lu, H. Song, H. Shi, Y. Yao, L. Zhang, J. Polym. Sci. B Polym. Phys., 2014, 52, 737 106. J.-Y. Kim, J. H. Mo, Y. H. Kang, S. Y. Cho, K.-S. Jang, Nanoscale, 2018, 10, 19766 107. C. H. Chien, P. C. Lee, W. H. Tsai, C. H. Lin, C. H. Lee, Y. Y. Chen, Sci. Rep., 2016, 6, 23672 108. J. A. Hernandez, A. Ruiz, L. F. Fonseca, M. T. Pettes, M. Jose-Yacaman, A. Benitez, Sci. Rep., 2018, 8, 11966 109. M. Piao, M.-K. Joo, J. Na, Y.-J. Kim, M. Mouis, G. Ghibaudo, S. Roth, W.-Y. Kim, H.-K. Jang, G. P. Kennedy, U. Dettlaff-Weglikowska, G.-T. Kim, J. Phys. Chem. C, 2014, 118, 26454 110. Y. Zhang, Y. J. Heo, M. Park, S. J. Park, Polymers (Basel), 2019, 11, 167 111. J. Han, Y. Zeng, Y. Song, H. Liu, Electron. Mater. Lett., 2019, 15, 278 112. X.-L. Shi, H. Wu, Q. Liu, W. Zhou, S. Lu, Z. Shao, M. Dargusch, Z.-G. Chen, Nano Energy, 2020, 78, 105195 113. J. Wang, B.-Y. Zhang, H.-J. Kang, Y. Li, X. Yaer, J.-F. Li, Q. Tan, S. Zhang, G.-H. Fan, C.-Y. Liu, L. Miao, D. Nan, T.-M. Wang, L.-D. Zhao, Nano Energy, 2017, 35, 387 114. J. Zhang, T. Zhang, H. Zhang, Z. Wang, C. Li, Z. Wang, K. Li, X. Huang, M. Chen, Z. Chen, Z. Tian, H. Chen, L.-D. Zhao, L. Wei, Adv. Mater., 2020, 32, e2002702 115. P. Cataldi, M. Cassinelli, J. A. Heredia-Guerrero, S. Guzman-Puyol, S. Naderizadeh, A. Athanassiou, M. Caironi, Adv. Funct. Mater., 2020, 30, 1907301 116. J. Li, B. Wang, Z. Ge, R. Cheng, L. Kang, X. Zhou, J. Zeng, J. Xu, X. Tian, W. Gao, K. Chen, C. Qiu, Z. Cheng, ACS Appl. Mater. Interfaces, 2019, 11, 39088 117. Y. Wang, M. Hong, W.-D. Liu, X.-L. Shi, S.-D. Xu, Q. Sun, H. Gao, S. Lu, J. Zou, Z.-G. Chen, Chem. Eng. J., 2020, 397, 125360 118. J. Liang, T. Wang, P. Qiu, S. Yang, C. Ming, H. Chen, Q. Song, K. Zhao, T.-R. Wei, D. Ren, Y.-Y. Sun, X. Shi, J. He, L. Chen, Energy Environ. Sci., 2019, 12, 2983 119. W. Hou, X. Nie, W. Zhao, H. Zhou, X. Mu, W. Zhu, Q. Zhang, Nano Energy, 2018, 50, 766 120. Y. Zheng, Q. Zhang, W. Jin, Y. Jing, X. Chen, X. Han, Q. Bao, Y. Liu, X. Wang, S. Wang, Y. Qiu, C.-a. Di, K. Zhang, J. Mater. Chem. A, 2020, 8, 2984 121. X. Hao, B. Peng, G. Xie, Y. Chen, Appl. Therm. Eng., 2016, 100, 170 122. L. Zhu, H. Tan, J. Yu, Energy Convers. Manag., 2013, 76, 685 123. Y.-W. Chang, C.-C. Chang, M.-T. Ke, S.-L. Chen, Appl. Therm. Eng., 2009, 29, 2731 124. H. Bottner, Ict: 2005 24th International Conference on Thermoelectrics, 2005, 1. 125. I. Chowdhury, R. Prasher, K. Lofgreen, G. Chrysler, S. Narasimhan, R. Mahajan, D. Koester, R. Alley, R. Venkatasubramanian, Nat. Nanotechnol., 2009, 4, 235 126. B. Yang, P. Wang, A. Bar-Cohen, IEEE Trans. Compon. Packaging Manuf. Technol., 2007, 30, 432 127. D. D. Vaughn, II, O. D. Hentz, S. Chen, D. Wang, R. E. Schaak, Chem. Commun., 2012, 48, 5608 128. G.-H. Kim, J. Gonder, J. Lustbader, A. Pesaran, World Electr. Veh. J., 2008, 2, 134 129. Y. Liu, S. Yang, B. Guo, C. Deng, Adv. Mech. Eng., 2015, 6, 852712 130. C. Alaoui, IEEE Trans. Veh. Technol., 2013, 62, 98 131. L. Pérez-Lombard, J. Ortiz, C. Pout, Energy Build., 2008, 40, 394 132. Z. Liu, L. Zhang, G. Gong, T. Han, Energy Convers. Manag., 2015, 94, 253 133. I. Sarbu, E. Valea, C. Sebarchievici, Adv. Mater. Res., 2013, 772, 581 134. X. Su, L. Zhang, Z. Liu, Y. Luo, D. Chen, W. Li, Renew. Energ., 2021, 171, 1061 135. R. A. Khire, A. Messac, S. Van Dessel, Int. J. Heat Mass Tran. 2005, 48, 4028. [136] X. Xu, S. Van Dessel, Energy Build., 2008, 40, 168 136. F. Liu, M. Zhang, P. Nan, X. Zheng, Y. Li, K. Wu, Z. Han, B. Ge, X. Zhao, C. Fu, T. Zhu, Small Science, 2023, 1, 2300082 137. B. Hu, X. Shi, J. Zou, Z. Chen, Chem. Eng. J., 2022, 437, 135268 138. B. Zhu, X. Liu, Q. Wang, Y. Qiu, Z. Shu, Z. Guo, Y. Tong, J. Cui, M. Gu, J. He, Energy Environ. Sci., 2020, 13, 2106 139. L. I. Anatychuk, N. V. Pasechnikova, V. O. Naumenko, O. S. Zadorozhnyi, S. L. Danyliuk, M. V. Havryliukйй, V. A. Tiumentsev, R. R. Kobylianskyi, Phys. Chem. Solid State, 2020, 21, 140 140. L. M. Katz, A. S. Young, J. E. Frank, Y. Wang, K. Park, Brain Res., 2004, 1017, 85 141. P. S. Midulla, A. Gandsas, A. M. Sadeghi, C. K. Mezrow, M. E. Yerlioglu, W. Wang, D. Wolfe, M. A. Ergin, R. B. Griepp, J. Cardiac. Surg., 1994, 9, 560 142. R. Ahiska, A. H. Yavuz, M. Kaymaz, İ. Güler, Instrum. Sci. Technol., 2008, 36, 636 143. D. J. Thurman, E. Beghi, C. E. Begley, A. T. Berg, J. R. Buchhalter, D. Ding, D. C. Hesdorffer, W. A. Hauser, L. Kazis, R. Kobau, B. Kroner, D. Labiner, K. Liow, G. Logroscino, M. T. Medina, C. R. Newton, K. Parko, A. Paschal, P. M. Preux, J. W. Sander, A. Selassie, W. Theodore, T. Tomson, S. Wiebe, I. C. o. Epidemiology, Epilepsia, 2011, 52, 2 144. S. L. Moshe, E. Perucca, P. Ryvlin, T. Tomson, Lancet, 2015, 385, 884 145. M. Fujii, H. Fujioka, T. Oku, N. Tanaka, H. Imoto, Y. Maruta, S. Nomura, K. Kajiwara, T. Saito, T. Yamakawa, T. Yamakawa, M. Suzuki, Neurol. Med-chir., 2010, 50, 839 146. N. Putra, Ardiyansyah, W. Sukyono, D. Johansen, F. N. Iskandar, Cryogenics, 2010, 50, 759 147. D. Astrain, A. Martínez, A. Rodríguez, Appl. Therm. Eng., 2012, 39, 140 148. J. G. Vián, D. Astrain, Appl. Therm. Eng., 2009, 29, 3319 149. R. A. Kishore, A. Nozariasbmarz, B. Poudel, M. Sanghadasa, S. Priya, Nat. Commun., 2019, 10, 1765 150. M. H. Yazdi, E. Solomin, A. Fudholi, K. Sopian, P. L. Chong, Therm. Sci. Eng. Prog., 2021, 26, 101127 151. E. Söylemez, E. Alpman, A. Onat, Int. J. Refrig., 2018, 95, 93 152. L. Lou, D. Shou, H. Park, D. Zhao, Y. S. Wu, X. Hui, R. Yang, E. C. Kan, J. Fan, Energ. Build., 2020, 226, 110374 153. M. Jradi, N. Ghaddar, K. Ghali, Int. J. Energ. Res., 2012, 36, 963 154. H. Zhu, W. Li, A. Nozariasbmarz, N. Liu, Y. Zhang, S. Priya, B. Poudel, Nat. Commun., 2023, 14, 3300 -
Rights and permissions
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.
Figures(8)
Tables(1)
Information
Received Date:
30 October 2023
Accepted Date:
08 January 2024
Available Online:
12 January 2024
Article Metrics
Export File
Citation
Dongrui Liu, Qian Cao, Bingchao Qin, LiDong Zhao. Progress and challenges for thermoelectric cooling: from materials and devices to manifold applications[J]. Materials Lab. doi: 10.54227/mlab.20230032
Format
Content
DownLoad:
-
Figure 1.

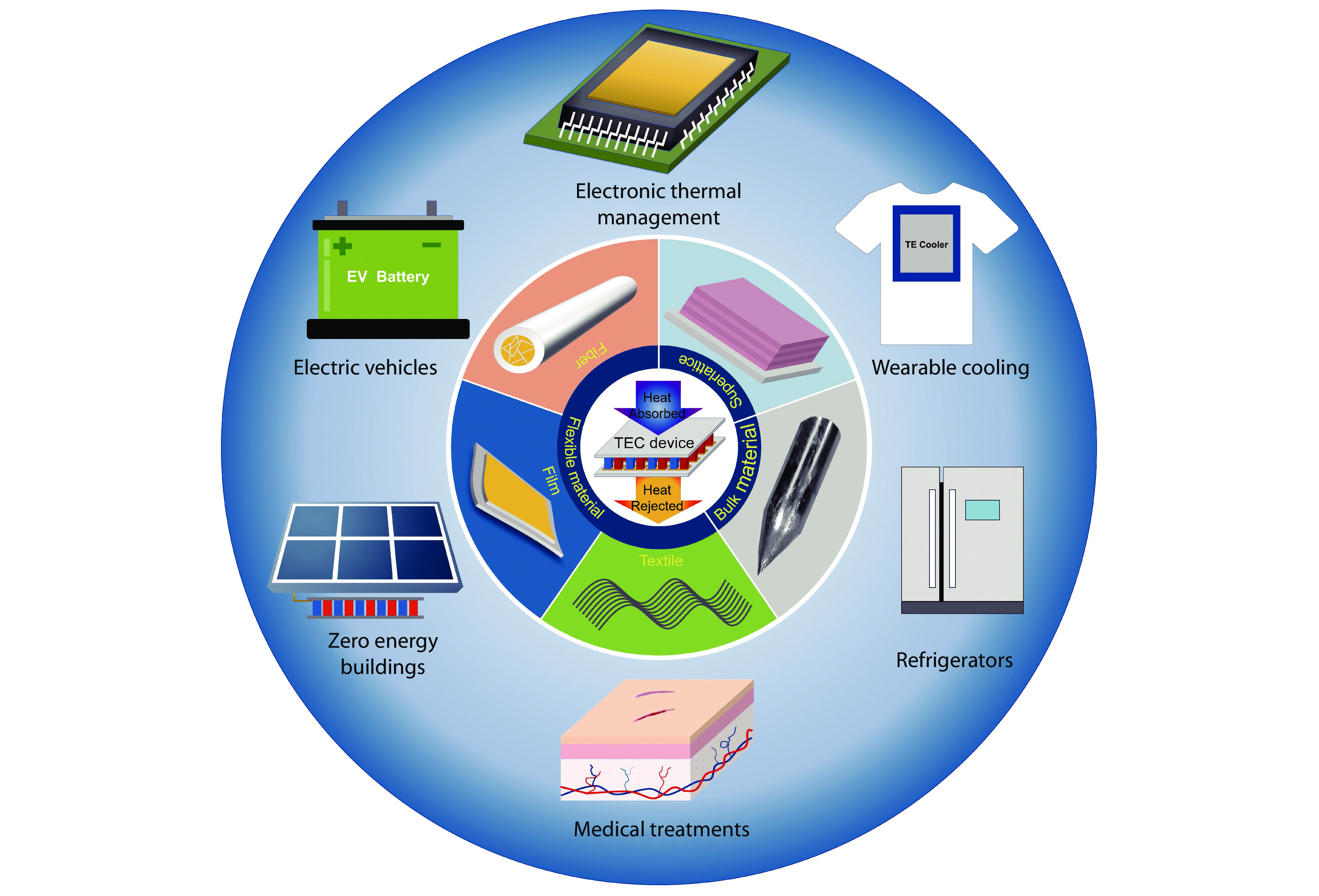

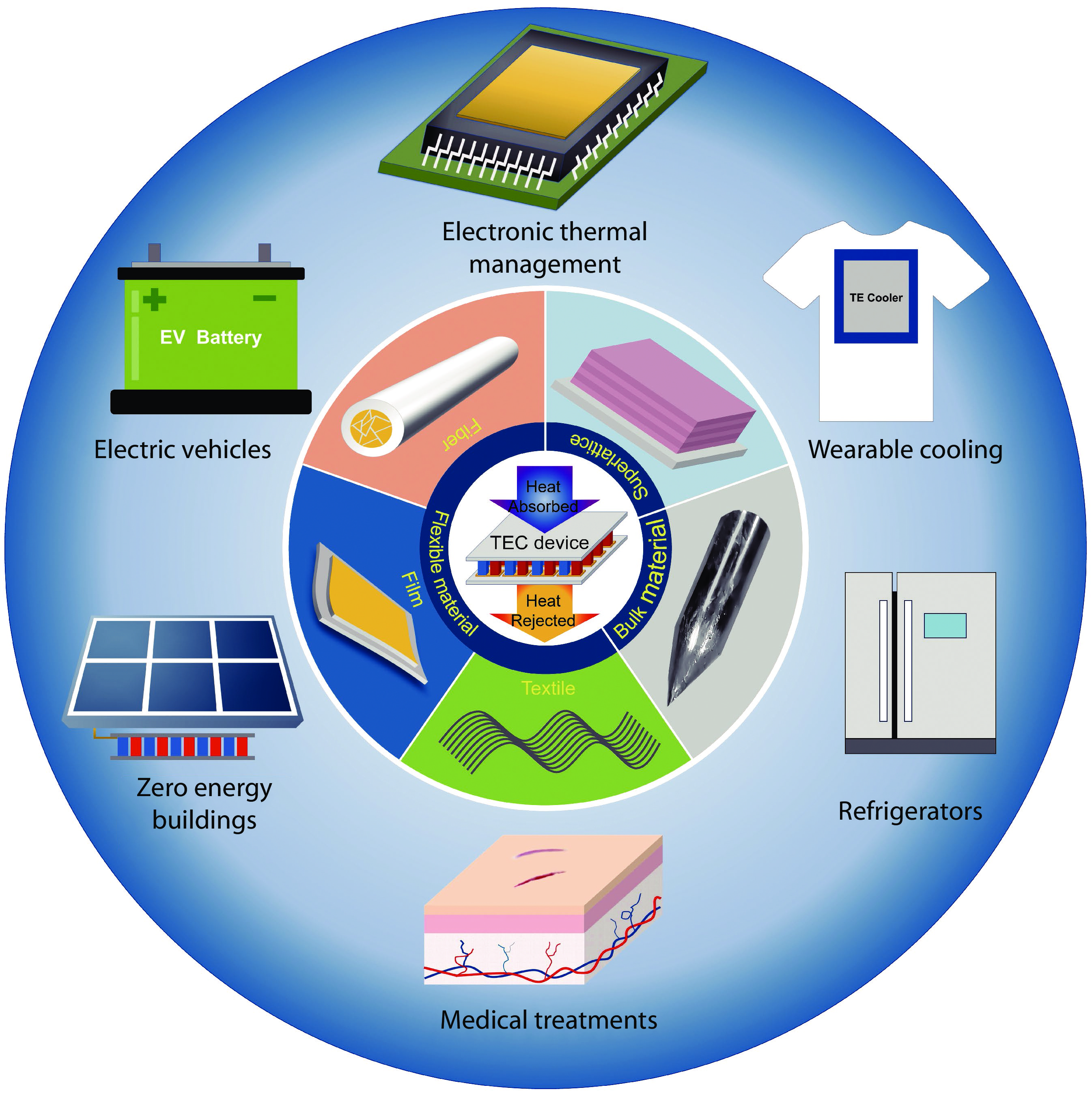

Schematic diagram of TEC materials, devices, and their manifold applications in different fields, typically including electronic thermal management, electric vehicles, zero energy buildings, medical treatments, and civil applications (mainly including refrigerators and wearable cooling), etc.
-
Figure 2.

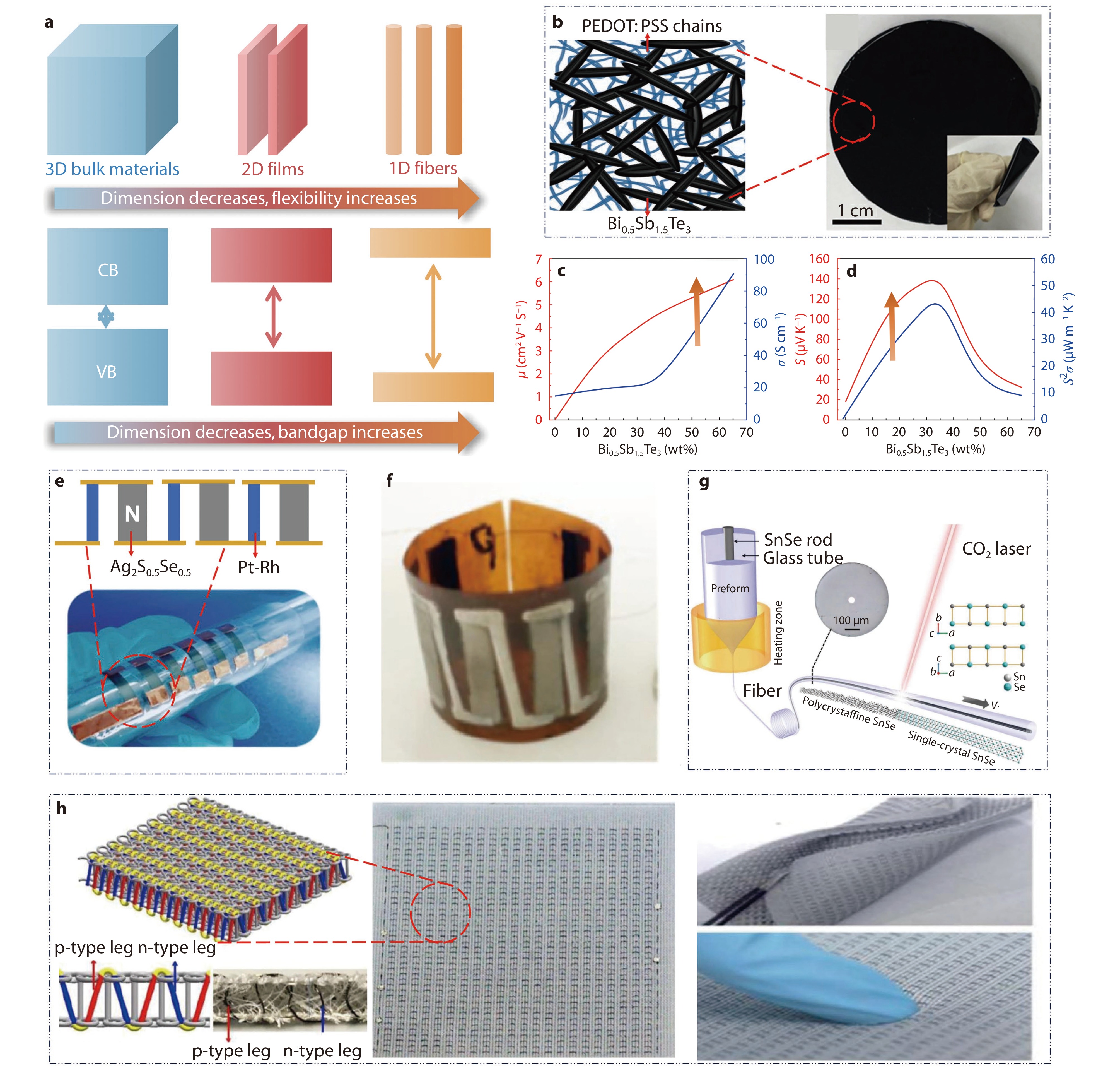

a Schematic diagram of quantum confinement effects; b Bi0.5Sb1.5Te3/PEDOT: PSS-based flexible thermoelectric film; c-d Room-temperature electrical transport properties of PEDOT: PSS film before and after adding Bi0.5Sb1.5Te3 filler.[117] Copyright 2020, Elsevier; e Fabricated full-inorganic thermoelectric device.[118] Copyright 2019, Royal Society of Chemistry; f A prototype flexible device composed of thick films.[119] Copyright 2018, Elsevier; g SnSe fiber fabrication and morphology.[114] Copyright 2020, Wiley; h The textiles made from warp-knitted spacer fabric in their as-prepared state, exhibiting admirable flexibility.[120] Copyright 2020, Royal Society of Chemistry.
-
Figure 3.

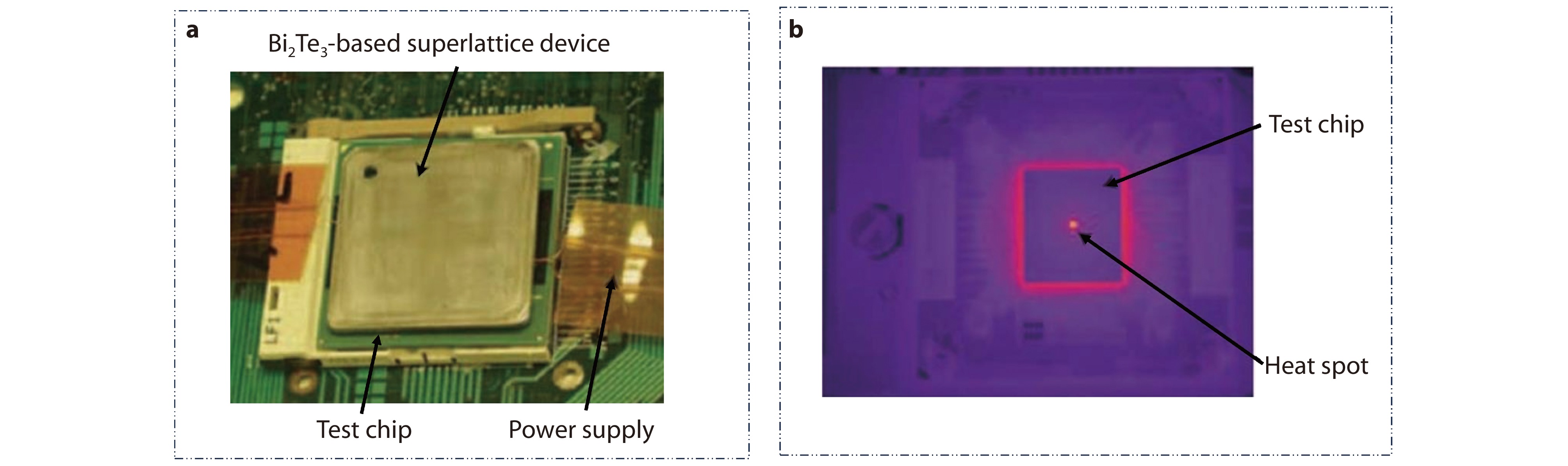

a Picture of Bi2Te3-based superlattice device used for electronic thermal management. The TEC device is powered by wires on both sides and installed on the test chip; b The operational infrared photos of both the electronic chip and TEC device reveal that, except for the hot spot, the entire section of the chip covered by TEC device exhibits comparatively lower temperature, suggesting that TEC effectively dissipates heat flow generated by the electronic device.[125] Copyright 2009, Springer Nature.
-
Figure 4.

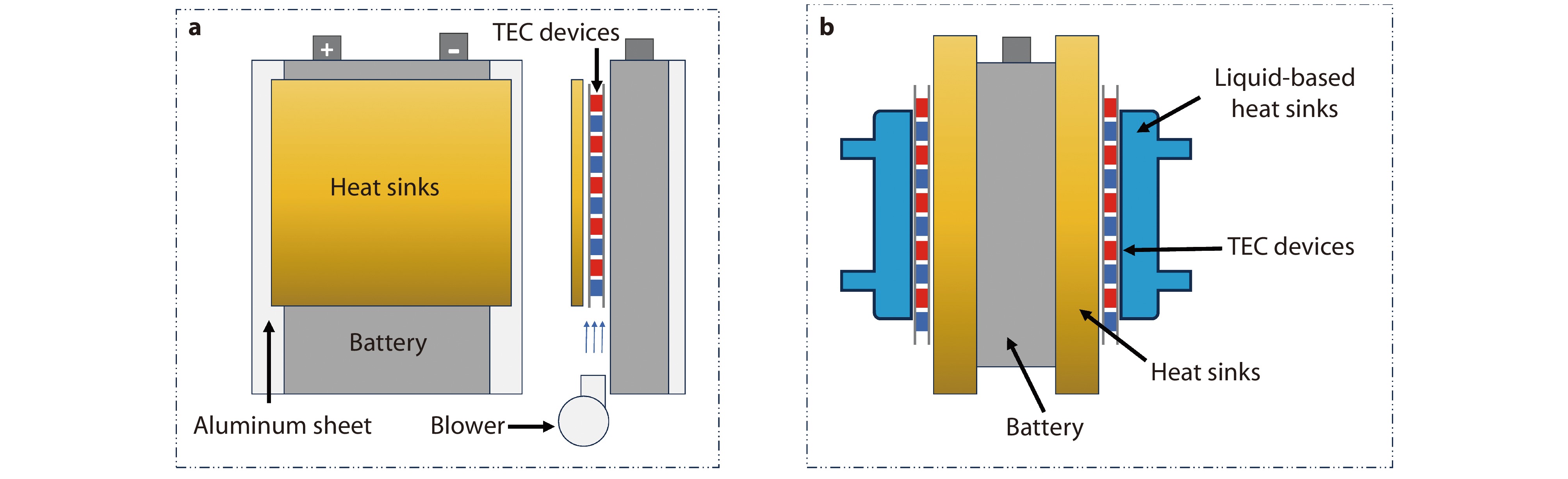

Schematic diagram of TEC-based BTMS integrated with a air cooling[130] and b liquid cooling[129], respectively.
-
Figure 5.

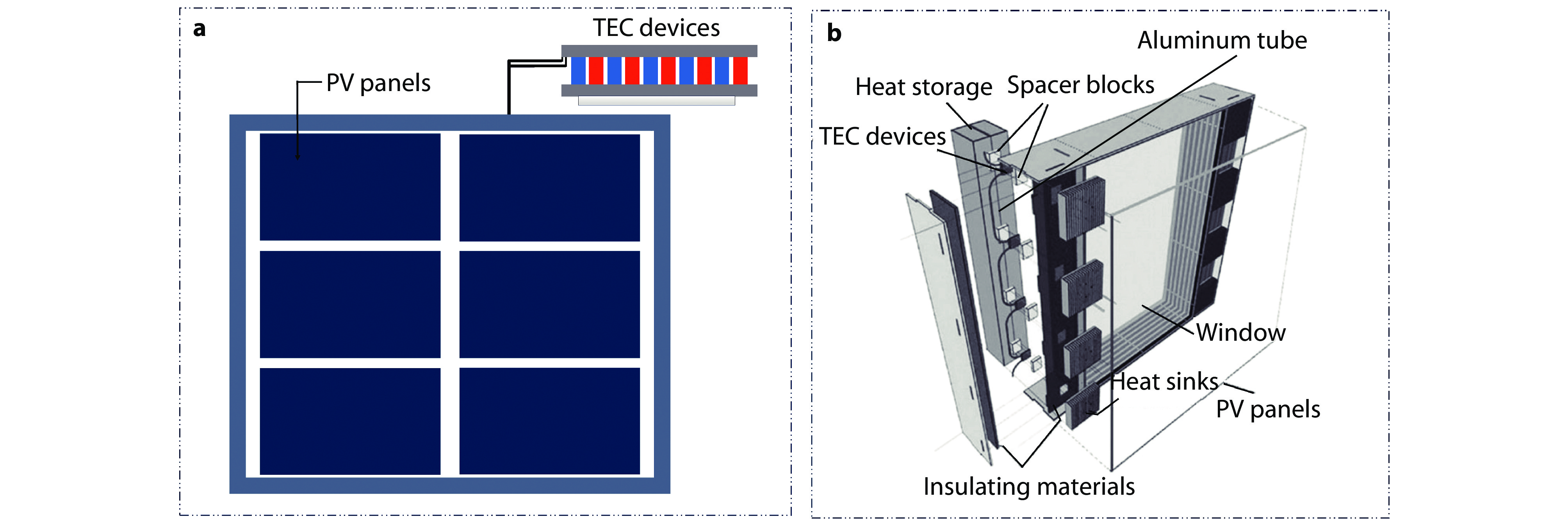

Schematic diagram of a active building wall[135] and b active building window[136] with the integrated PV and TEC technologies.[136] Copyright 2008, Elsevier.
-
Figure 6.

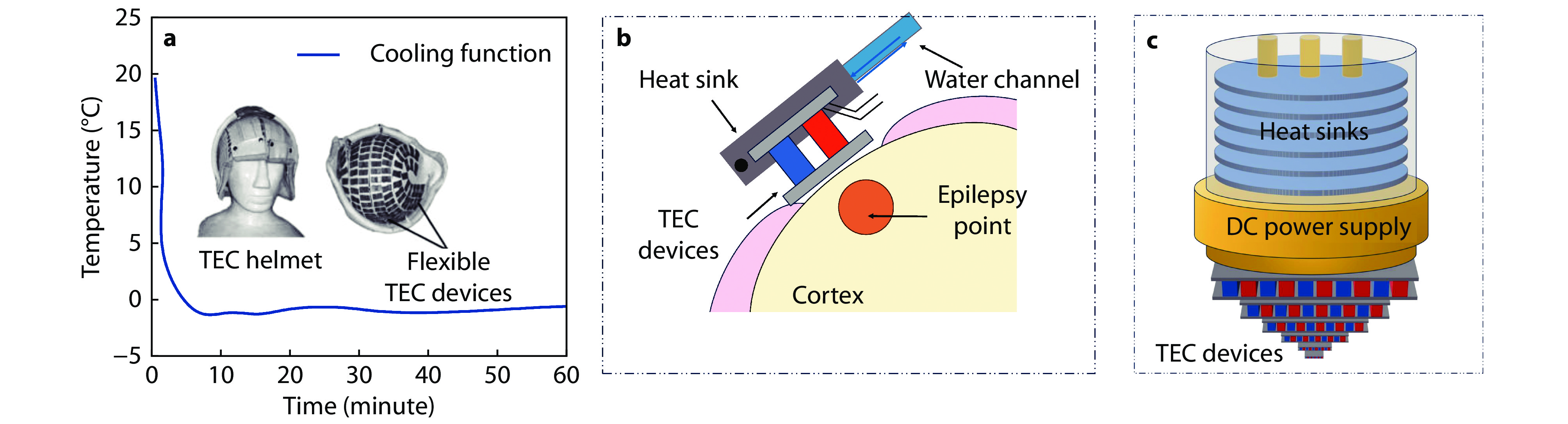

a The cooling temperature of the TEC helmet as the function of operating time, with the insets showing the TEC helmet and its inner structure.[143] Copyright 2008, Taylor & Francis Group; b Schematic diagram of TEC device for treating epilepsy;[146] c Schematic diagram of a cryoprobe for cryosurgery. DC: direct current.[147]
-
Figure 7.

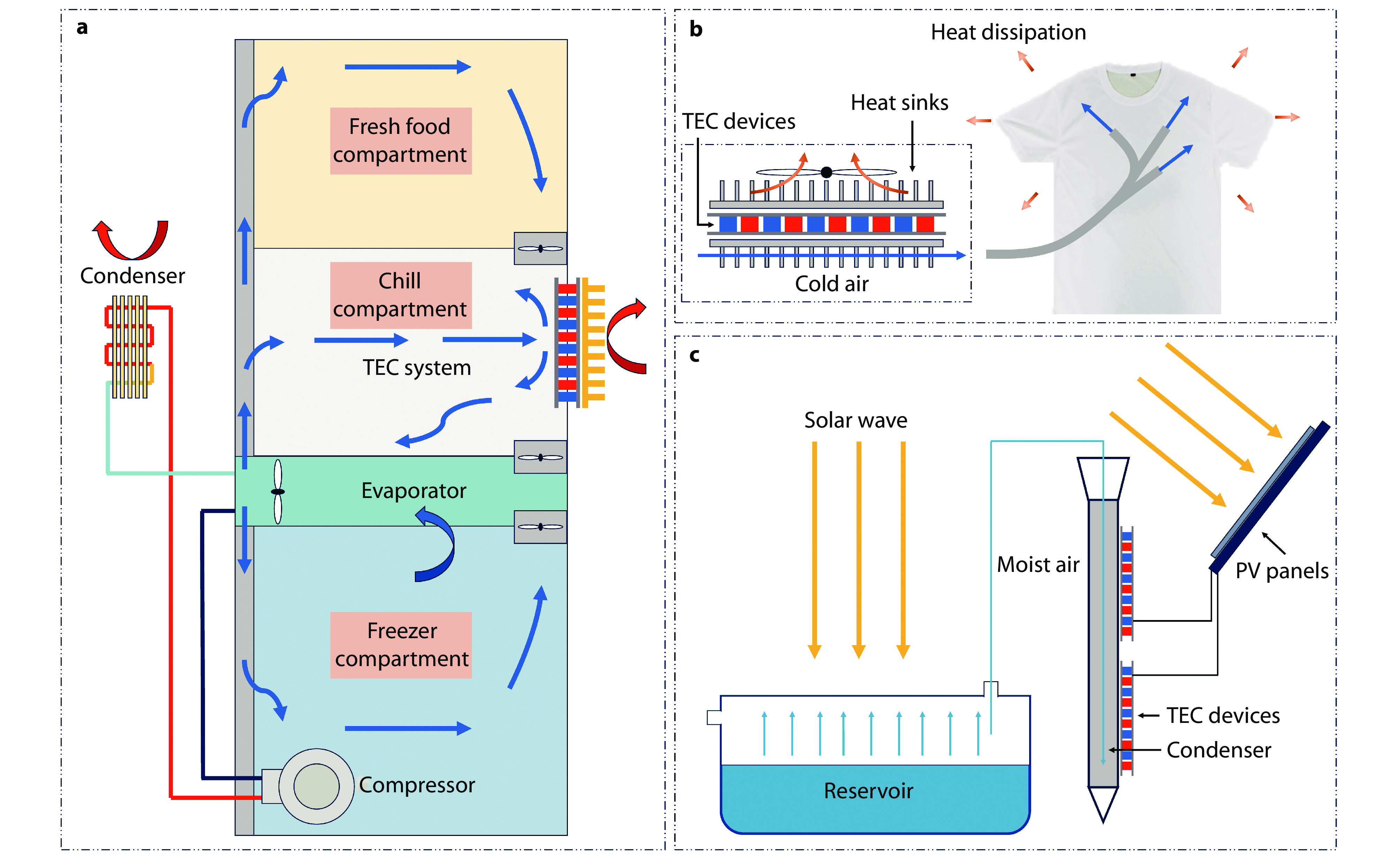

a Schematic diagram of TEC and vapor compression hybrid refrigerator. The compressor played a crucial role in the refrigeration cycle by compressing the refrigerant. During this process, the refrigerant undergoes evaporation and condensation, which enables it to absorb and release internal heat. In order to further enhance the refrigeration efficiency, a TEC system has been installed in the chill compartment, which is located between the fresh food and freezer compartments. This innovative system rapidly dissipated the heat generated by the upper and lower compartments to the environment. As a result, the overall cooling efficiency of the hybrid refrigerator was significantly improved;[152] b Operational schematic diagram of personal thermal management using TEC-based underwear;[153] c Structural schematic diagram of TEC-PV integrated freshwater generator.[154]
