Recent progress on quaternary copper-based diamondoid thermoelectric materials
-
Abstract
The rising concern on energy and environmental crises have sparked global interest in developing sustainable new energy and high-efficient energy conversion technologies. Thermoelectric technology has gained attention due to its potential for application in waste heat recovery and solid-state refrigeration. However, the application of traditional thermoelectric materials remains limited due to their expensive and toxic elemental composition. Recently, quaternary copper-based diamondoid materials have garnered significant interest due to their unique transport properties, high element abundance, and low toxicity. Many of these materials have demonstrated promising
ZT value, positioning them as potential candidates for efficient thermoelectric applications. This paper summarizes the recent progress in copper-based quaternary diamondoid materials. We present a collection of research focused on optimizing electrical transport properties through carrier concentration tuning and band engineering, along with an overview of reducing thermal conductivityvia microstructure enhanced phonon scattering. Finally, we analyze the current research bottlenecks in copper-based quaternary diamondoid thermoelectric materials and propose future research directions. -
-
Author Biographies
Zihao Zhao received his B.A. degree in the International School of Materials Science and Engineering from Wuhan University of Technology, China in 2023. He is now a master student studying in the School of Materials Science and Engineering at Beihang University. His research focuses on the quaternary diamond structure thermoelectric materials.
Hongyao Xie is currently a professor of the School of Materials Science and Engineering at Beihang University, China. He received his Ph.D. degree from Wuhan University of Technology, China, in 2018. He was a postdoctoral research fellow at Northwestern University from 2018 to 2023. His research focuses on the solid-state chemistry and thermoelectric materials.
Li-Dong Zhao is currently a full professor of the School of Materials Science and Engineering at Beihang University, China. He received his Ph.D. degree from the University of Science and Technology Beijing, China in 2009. He was a postdoctoral research associate at the Université Paris-Sud and Northwestern University from 2009 to 2014. His research interests include electrical and thermal transport behaviors in the compounds with layered structures. He has authored over 270 peer-reviewed publications in international journals with an h-index of 87. Professor Zhao has been identified as Highly Cited Researchers by Clarivate (2019-2024). -
References
1. H. Xie, L. Zhao, M. G. Kanatzidis, Interdiscip. Mater., 2024, 3, 5 2. Y. Liu, H. Xie, Z. Li, Y. Zhang, C. D. Malliakas, M. Al Malki, S. Ribet, S. Hao, T. Pham, Y. Wang, X. Hu, R. dos Reis, G. J. Snyder, C. Uher, C. Wolverton, M. G. Kanatzidis, V. P. Dravid, J. Am. Chem. Soc., 2023, 145, 8677 3. H. Xie, X. Su, S. Hao, C. Wolverton, C. Uher, X. Tang, M. G. Kanatzidis, Phys. Rev. Mater., 2020, 4, 025405 4. Z. Zheng, X. Su, R. Deng, C. Stoumpos, H. Xie, W. Liu, Y. Yan, S. Hao, C. Uher, C. Wolverton, M. G. Kanatzidis, X. F. Tang, J. Am. Chem. Soc., 2018, 140, 2673 5. H. Xie, L. Zhao, Mater. Futures, 2024, 3, 013501 6. H. Xie, X. Su, T. P. Bailey, C. Zhang, W. Liu, C. Uher, X. Tang, M. G. Kanatzidis, Chem. Mater., 2020, 32, 2639 7. D. Liu, D. Wang, T. Hong, Z. Wang, Y. Wang, Y. Qin, L. Su, T. Yang, X. Gao, Z. Ge, B. Qin, L. Zhao, Science, 2023, 380, 841 8. Y. Zheng, Q. Zhang, X. Su, H. Xie, S. Shu, T. Chen, G. Tan, Y. Yan, X. Tang, C. Uher, G. J. Snyder, Adv. Energy Mater., 2015, 5, 1401391 9. D. Gao, S. Wang, Y. Wen, F. Fang, Y. Li, S. Liu, Y. Wang, H. Xie, Y. Qiu, L. Zhao, Mater. Today Phys., 2024, 41, 101353 10. H. Xie, S. Hao, J. Bao, T. J. Slade, G. J. Snyder, C. Wolverton, M. G. Kanatzidis, J. Am. Chem. Soc., 2020, 142, 9553 11. G. Zheng, X. Su, H. Xie, Y. Shu, T. Liang, X. She, W. Liu, Y. Yan, Q. Zhang, C. Uher, M. G. Kanatzidis, X. F. Tang, Energy Environ. Sci., 2017, 10, 2638 12. J. He, T. M. Tritt, Science, 2017, 357, 1369 13. S. Bai, X. Zhang, L. Zhao, Acc. Chem. Res., 2023, 56, 3065 14. L. Zhao, S. Lo, Y. Zhang, H. Sun, G. Tan, C. Uher, C. Wolverton, V. P. Dravid, M. G. Kanatzidis, Nature, 2014, 508, 373 15. L. Zhao, G. Tan, S. Hao, J. He, Y. Pei, H. Chi, H. Wang, S. Gong, H. Xu, V. P. Dravid, C. Uher, G. J. Snyder, C. Wolverton, M. G. Kanatzidis, Science, 2016, 351, 141 16. E. S. Bozin, H. Xie, A. M. M. Abeykoon, S. M. Everett, M. G. Tucker, M. G. Kanatzidis, S. J. L. Billinge, Phys. Rev. Lett., 2023, 131, 036101 17. J. Qiu, Y. Yan, T. Luo, K. Tang, L. Yao, J. Zhang, M. Zhang, X. Su, G. Tan, H. Xie, M. G. Kanatzidis, C. Uher, X. Tang, Energy Environ. Sci., 2019, 12, 3106 18. B. Zhu, X. Liu, Q. Wang, Y. Qiu, Z. Shu, Z. Guo, Y. Tong, J. Cui, M. Gu, J. He, Energy Environ. Sci., 2020, 13, 2106 19. L. Wang, Y. Wen, S. Bai, C. Chang, Y. Li, S. Liu, D. Liu, S. Wang, Z. Zhao, S. Zhan, Q. Cao, X. Gao, H. Xie, L. Zhao, Nat. Commun., 2024, 15, 3782 20. S. Wang, Y. Wen, Y. Zhu, Z. Wang, D. Liu, J. Zheng, S. Zhan, H. Xie, Z. Ge, X. Gao, Q. Cao, C. Chang, L. Zhao, Small, 2024, 20, 2400866 21. H. Pang, Y. Qin, B. Qin, L. Yu, X. Su, H. Liang, Z. Ge, Q. Cao, Q. Tan, L. Zhao, Adv. Funct. Mater., 2024, 34, 2401716 22. S. Liu, Y. Wen, S. Bai, H. Shi, Y. Qin, B. Qin, D. Liu, Q. Cao, X. Gao, L. Su, C. Chang, X. Zhang, L. Zhao, Adv. Mater., 2024, 36, 2401828 23. X. Chen, H. Wu, J. Cui, Y. Xiao, Y. Zhang, J. He, Y. Chen, J. Cao, W. Cai, S. J. Pennycook, Z. Liu, L. Zhao, J. Sui, Nano Energy, 2018, 52, 246 24. D. Li, B. Zhang, H. Ming, L. Wang, Y. Zu, X. Qin, ACS Appl. Mater. Interfaces, 2021, 13, 34534 25. J. Vinodhini, V. Shalini, S. Harish, H. Ikeda, J. Archana, M. Navaneethan, J. Colloid Interface Sci., 2023, 651, 436 26. K. Imasato, S. D. Kang, S. Ohno, G. J. Snyder, Mater. Horiz., 2018, 5, 59 27. H. Xie, Y. Liu, Y. Zhang, S. Hao, Z. Li, M. Cheng, S. Cai, G. J. Snyder, C. Wolverton, C. Uher, V. P. Dravid, M. G. Kanatzidis, J. Am. Chem. Soc., 2022, 144, 9113 28. J. Yu, C. Fu, Y. Liu, K. Xia, U. Aydemir, T. C. Chasapis, G. J. Snyder, X. Zhao, T. Zhu, Adv. Energy Mater., 2018, 8, 1701313 29. X. Cheng, B. Zhu, D. Yang, X. Su, W. Liu, H. Xie, Y. Zheng, X. Tang, ACS Appl. Mater. Interfaces, 2022, 14, 5439 30. L. Hu, Y. Luo, Y. Fang, F. Qin, X. Cao, H. Xie, J. Liu, J. Dong, A. Sanson, M. Giarola, X. Tan, Y. Zheng, A. Suwardi, Y. Z. Huang, K. Hippalgaonkar, J. He, W. Zhang, J. Xu, Q. Yan, M. G. Kanatzidis, Adv. Energy Mater., 2021, 11, 2100661 31. X. Cheng, D. Yang, X. Su, H. Xie, W. Liu, Y. Zheng, X. Tang, ACS Appl. Mater. Interfaces, 2021, 13, 55178 32. Y. Cao, X. Su, F. Meng, T. P. Bailey, J. Zhao, H. Xie, J. He, C. Uher, X. Tang, Adv. Funct. Mater., 2020, 30, 2005861 33. X. Shi, F. Huang, M. Liu, L. Chen, Appl. Phys. Lett., 2009, 94, 122103 34. M. Liu, I. Chen, F. Huang, L. Chen, Adv. Mater., 2009, 21, 3808 35. H. Xie, S. Hao, S. Cai, T. P. Bailey, C. Uher, C. Wolverton, V. P. Dravid, M. G. Kanatzidis, Energy Environ. Sci., 2020, 13, 3693 36. R. Liu, L. Xi, H. Liu, X. Shi, W. Zhang, L. Chen, Chem. Commun., 2012, 48, 3818 37. T. Plirdpring, K. Kurosaki, A. Kosuga, T. Day, S. Firdosy, V. Ravi, G. J. Snyder, A. Harnwunggmoung, T. Sugahara, Y. Ohishi, H. Muta, S. Yamanaka, Adv. Mater., 2012, 24, 3622 38. H. Xie, Z. Li, Y. Liu, Y. Zhang, C. Uher, V. P. Dravid, C. Wolverton, M. G. Kanatzidis, J. Am. Chem. Soc., 2023, 145, 3211 39. H. Xie, E. S. Bozin, Z. Li, M. Abeykoon, S. Banerjee, J. P. Male, G. J. Snyder, C. Wolverton, S. J. L. Billinge, M. G. Kanatzidis, Adv. Mater., 2022, 34, 2202255 40. H. Xie, X. Su, G. Zheng, T. Zhu, K. Yin, Y. Yan, C. Uher, M. G. Kanatzidis, X. Tang, Adv. Energy Mater., 2017, 7, 1601299 41. H. Xie, X. Su, S. Hao, C. Zhang, Z. Zhang, W. Liu, Y. Yan, C. Wolverton, X. Tang, M. G. Kanatzidis, J. Am. Chem. Soc., 2019, 141, 18900 42. M. Liu, F. Huang, L. Chen, I. Chen, Appl. Phys. Lett., 2009, 94, 202103 43. Q. Jiang, H. Yan, Y. Lin, Y. Shen, J. Yang, M. J. Reece, J. Mater. Chem. A, 2020, 8, 10909 44. Y. Dong, H. Wang, G. S. Nolas, Physica Status Solidi: RRL, 2014, 8, 61 45. Z. Li, W. Zhang, B. Gu, C. Zhao, B. Ye, C. Xiao, Y. Xie, J. Mater. Chem. A, 2021, 9, 1006 46. F. Liu, J. Zheng, M. Huang, L. He, W. Q. Ao, F. Pan, J. Li, Sci. Rep., 2014, 4, 5774 47. B. Wang, Y. Li, J. Zheng, M. Xu, F. Liu, W. Q. Ao, J. Li, F. Pan, Sci. Rep., 2015, 5, 9365 48. R. Chetty, A. Bali, R. C. Mallik, Intermetallics, 2016, 72, 17 49. F. Mehmood, Y. Sun, W. Su, G. Chebanova, J. Zhai, L. Wang, M. Khan, A. Romanenko, H. Wang, C. Wang, Physica Status Solidi: RRL, 2022, 16, 2200049 50. K. Wei, L. Beauchemin, H. Wang, W. D. Porter, J. Martin, G. S. Nolas, J. Alloys Compd., 2015, 650, 844 51. Q. Song, P. Qiu, H. Chen, K. Zhao, M. Guan, Y. Zhou, T. Wei, D. Ren, L. Xi, J. Yang, Z. Chen, X. Shi, L. Chen, Mater. Today Phys., 2018, 7, 45 52. T. Parashchuk, O. Cherniushok, O. Smitiukh, O. Marchuk, K. T. Wojciechowski, Chem. Mater., 2023, 35, 4772 53. S. D. Sharma, K. Bayikadi, S. Raman, S. Neeleshwar, Nanotechnology, 2020, 31, 365402 54. A. Ashfaq, A. Ali, K. Mahmood, U. u. Rehman, S. Tahir, N. Amin, W. Ahmad, R. N. Aslam, M. Arshad, K. Rasheed, Ceram. Int., 2021, 47, 35356 55. E. Isotta, C. Fanciulli, N. M. Pugno, P. Scardi, Nanomaterials, 2019, 9, 762 56. A. Nagaoka, K. Yoshino, T. Masuda, T. D. Sparks, M. A. Scarpulla, K. Nishioka, J. Mater. Chem. A, 2021, 9, 15595 57. Q. Chen, G. Wang, A. Zhang, D. Yang, W. Yao, K. Peng, Y. Yan, X. Sun, A. Liu, G. Wang, X. Zhou, J. Mater. Chem. C, 2015, 3, 12273 58. J. Jacob, H. T. Ali, A. Ali, K. Mehboob, A. Ashfaq, S. Ikram, U. Rehman, K. Mahmood, N. Amin, Mater. Sci. Semicond. Process., 2021, 123, 105587 59. C. Xiao, K. Li, J. Zhang, W. Tong, Y. Liu, Z. Li, P. Huang, B. Pan, H. Su, Y. Xie, Mater. Horiz., 2014, 1, 81 60. T. Huo, F. Mehmood, H. Wang, W. Su, X. Wang, T. Chen, K. Zhang, J. Feng, C. Wang, Phys. Status Solidi A, 2020, 217, 2000198 61. H. Xie, X. Su, X. Zhang, S. Hao, T. P. Bailey, C. C. Stoumpos, A. P. Douvalis, X. Hu, C. Wolverton, V. P. Dravid, C. Uher, X. Tang, M. G. Kanatzidis, J. Am. Chem. Soc., 2019, 141, 10905 62. Q. Song, P. Qiu, H. Chen, K. Zhao, D. Ren, X. Shi, L. Chen, ACS Appl. Mater. Interfaces, 2018, 10, 10123 63. Y. Zhu, Y. Liu, G. Ren, X. Tan, M. Yu, Y. Lin, C. Nan, A. Marcelli, T. Hu, W. Xu, Inorg. Chem., 2018, 57, 6051 64. C. P. Heinrich, T. W. Day, W. G. Zeier, G. J. Snyder, W. Tremel, J. Am. Chem. Soc., 2014, 136, 442 65. Y. Sun, A. Abbas, H. Wang, C. Tan, Z. Li, Y. Zong, H. Sun, C. Wang, H. Wang, Chem. Eng. J., 2024, 486, 150158 66. F. Fan, B. Yu, Y. Wang, Y. Zhu, X. Liu, S. Yu, Z. Ren, J. Am. Chem. Soc., 2011, 133, 15910 67. K. Wei, G. S. Nolas, ACS Appl. Mater. Interfaces, 2015, 7, 9752 68. Q. Chen, Y. Yan, H. Zhan, W. Yao, Y. Chen, J. Dai, X. Sun, X. Zhou, J. Materiomics, 2016, 2, 179 69. H. Nautiyal, K. Lohani, B. Mukherjee, E. Isotta, M. A. Malagutti, N. Ataollahi, I. Pallecchi, M. Putti, S. T. Misture, L. Rebuffi, P. Scardi, Nanomaterials, 2023, 13, 366 70. B. Mukherjee, E. Isotta, M. A. Malagutti, K. Lohani, L. Rebuffi, C. Fanciulli, P. Scardi, J. Alloys Compd., 2023, 933, 167756 71. Y. Zhu, Y. Liu, X. Tan, G. Ren, M. Yu, T. Hu, A. Marcelli, W. Xu, AIP Adv., 2018, 8, 045218 72. R. Basu, S. Mandava, A. Bohra, S. Bhattacharya, R. Bhatt, S. Ahmad, K. Bhattacharyya, S. Samanta, A. K. Debnath, A. Singh, D. K. Aswal, K. P. Muthe, S. C. Gadkari, J. Electron. Mater., 2019, 48, 2120 73. J. E. El Hamdaoui, M. Kria, K. Lakaal, M. El-Yadri, E. M. Feddi, L. P. Pedraja Rejas, L. M. Pérez, P. Díaz, M. E. Mora-Ramos, D. Laroze, Int. J. Mol. Sci., 2022, 23, 12785 74. W. G. Zeier, A. LaLonde, Z. M. Gibbs, C. P. Heinrich, M. Panthöfer, G. J. Snyder, W. Tremel, J. Am. Chem. Soc., 2012, 134, 7147 75. V. P. Kumar, E. Guilmeau, B. Raveau, V. Caignaert, U. V. Varadaraju, J. Appl. Phys., 2015, 118, 155101 76. R. Chetty, J. Dadda, J. de Boor, E. Müller, R. C. Mallik, Intermetallics, 2015, 57, 156 77. M. Ibáñez, R. Zamani, A. LaLonde, D. Cadavid, W. H. Li, A. Shavel, J. Arbiol, J. R. Morante, S. Gorsse, G. J. Snyder, A. Cabot, J. Am. Chem. Soc., 2012, 134, 4060 -
Rights and permissions
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.
Figures(10)
Tables(1)
Information
Article Metrics
Export File
Citation
Zihao Zhao, Hongyao Xie, Li-Dong Zhao. Recent progress on quaternary copper-based diamondoid thermoelectric materials[J]. Materials Lab, 2024, 3(3): 240005. doi: 10.54227/mlab.20240005
Format
Content
DownLoad:
-
Figure 1.
The development of quaternary diamondoid thermoelectric materials. a Structure of quaternary diamondoid thermoelectric materials. b Current state of the art quaternary diamondoid thermoelectric materials, the figure-of-merit ZT as a function of temperature and the published time.
-
Figure 2.
The influence of different cation vacancies on thermoelectric transport properties for Cu2ZnSnSe4. a Schematic diagram of different cation vacancies in Cu2ZnSnSe4. Temperature dependence of b Electric conductivity (σ) and c Lattice thermal conductivity (κl). d The room temperature of carrier concentration (pH) and mobility(μH) for different samples. e Total thermal conductivity (κtot) as a function of temperature.
-
Figure 3.
The influence of different defects on carrier transport in Cu2FeSnSe4. a Defect formation energy of Cu-poor conditions. b Defect formation energy of Cu-rich conditions. Schematic diagram of charge carriers scattering by c VCu vacancy and d CuFe anti-site defect. e The room temperature carrier concentration (pH) and mobility (μH) for Cu2+xFe1-xSnSe4. f Electric conductivity (σ) as a function of temperature for Cu2+xFe1-xSnSe4.
-
Figure 4.

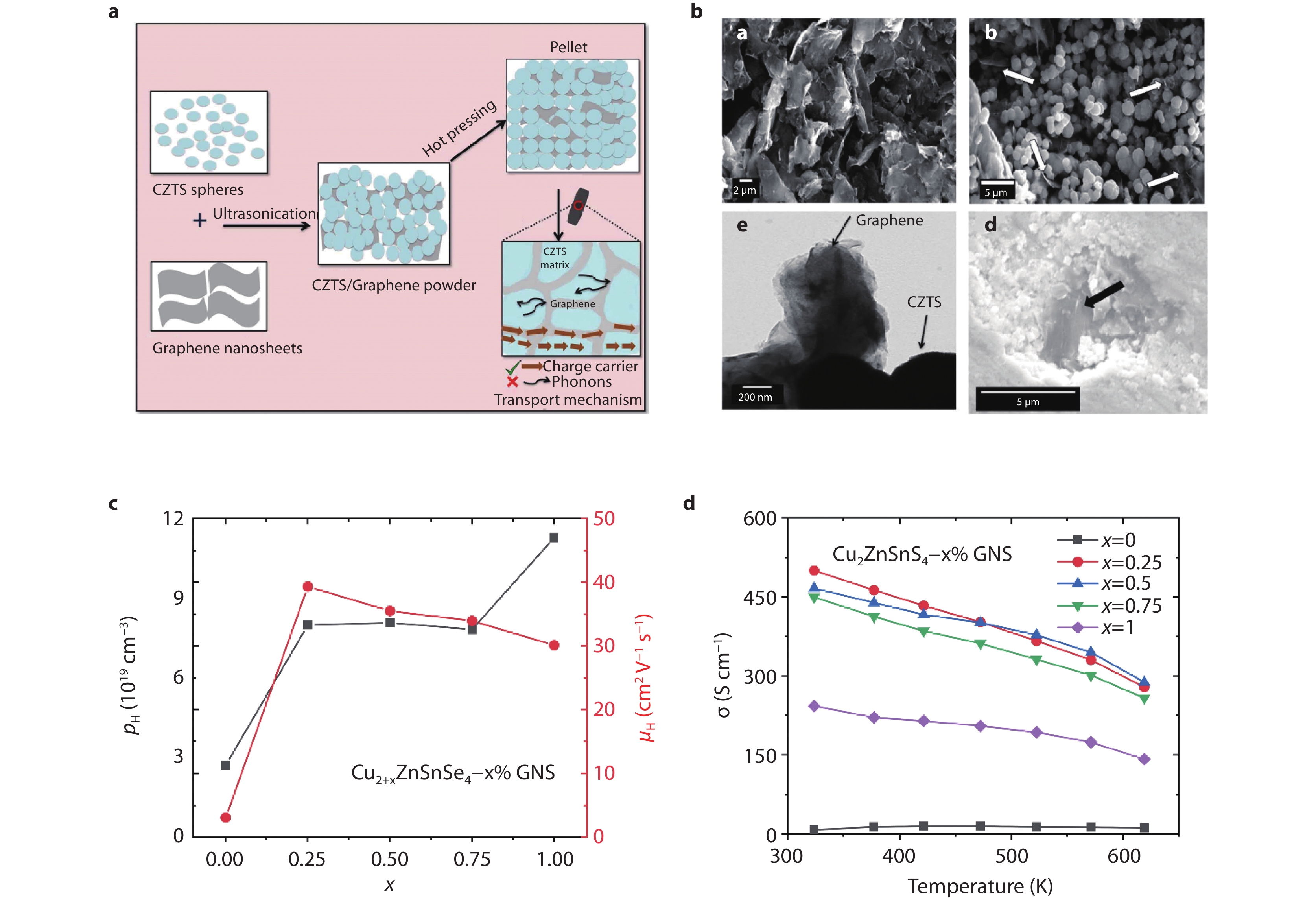

Introducing graphene to improve the electrical transport performance of Cu2ZnSnS4. a Schematic diagram shows the microstructure of sample. b SEM micrographs and TEM image of Cu2ZnSnS4/0.75 wt% GNs composite powder. c The room temperature carrier concentration (pH) and mobility (μH) of graphene doped samples. d Temperature dependence of electric conductivity (σ).
-
Figure 5.
The influence of ordered and disordered structure on electrical transport performance of Cu2ZnSnS4. Temperature dependence of a Seebeck coefficient (S) and b electric conductivity (
$ \sigma $ -
Figure 6.
The crystal structure and transport properties of Cu2ZnSnS4. a The crystal structures of ordered and disordered Cu2ZnSnS4. b Pseudo-cubic structure shows the crystal structure parameter η (c/2a) ≈ 1. c The valence bands for the ordered and disordered Cu2ZnSnS4. d Temperature dependence of ZT for Cu2ZnSnS4 single crystals with different composition.
-
Figure 7.
The influence of lattice strain on thermal conductivity. a The TEM image of Cu2MnSnSe4 showing the stacking faults in the matrix.b SAED pattern of Cu2MnSnSe4 along [1-1-1] direction. c The IFFT image showing dislocation in the material. d The corresponding strain mapping of Cu2MnSnSe4 lattice. e The lattice thermal conductivity (κl) and lattice strain of Cu2MnSnSe4. f Temperature dependence of total thermal conductivity (κtot) of Cu2MnSnSe4.
-
Figure 8.

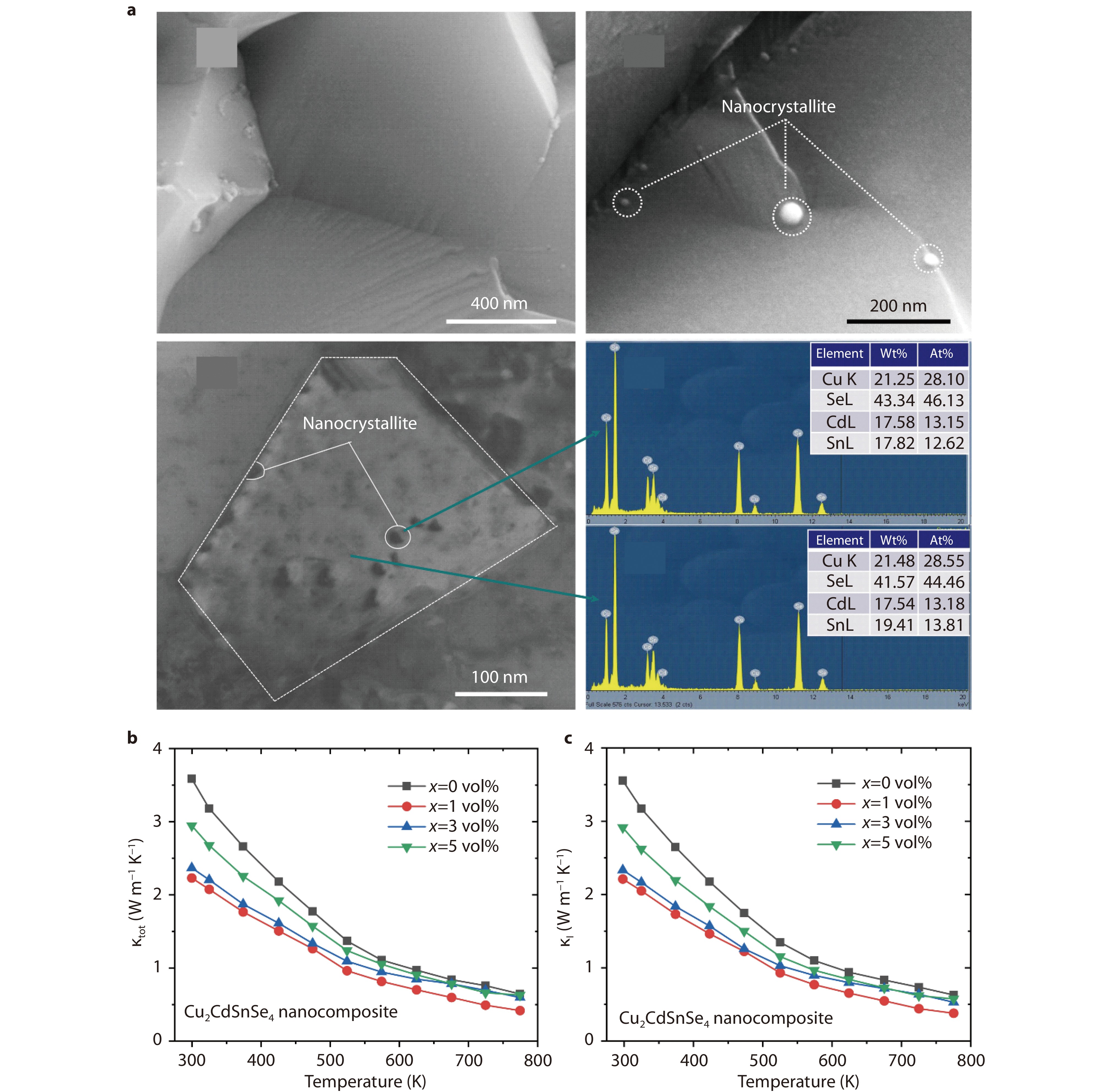

Morphology and thermal properties of nanocomposite materials. a The morphology of fracture surface for Cu2CdSnSe4 matrix and the nanocomposite. Temperature dependence of b total thermal conductivity (κtot) and c lattice thermal conductivity (κl) for Cu2CdSnSe4 nanocomposite materials.
-
